Hantro VC9000E

Home IP Portfolio Hantro^® VPU IP Hantro VC9000E

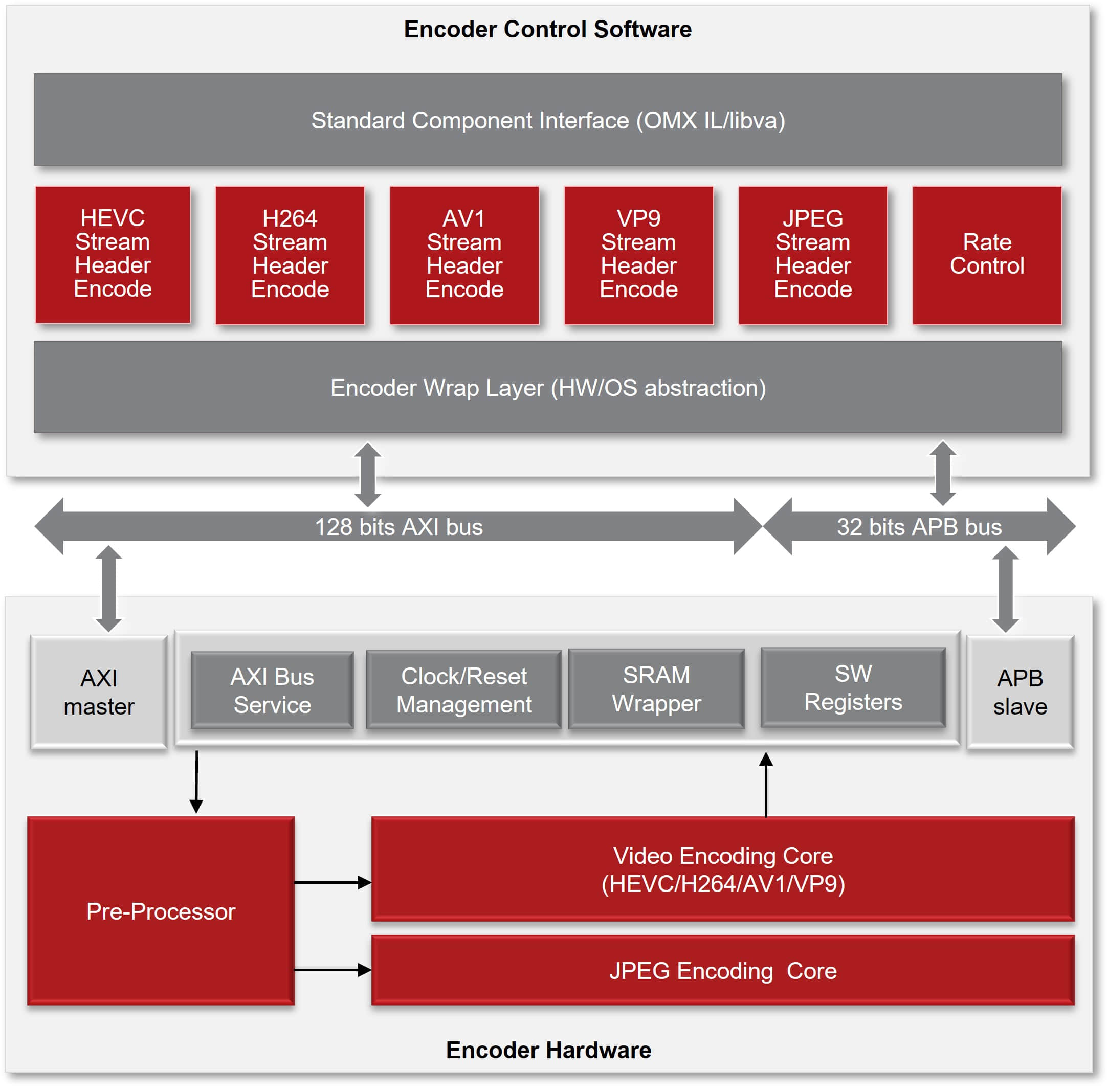

Hantro VC9000E multi-format video encoder

Hantro VC9000E enables 8K encoding with a competitive PPA and high video quality single-core solution supporting AV1, HEVC, H.264, VP9 video formats and JPEG.

IDH's Hantro VC9000E is based on silicon-proven IDH Hantro technology that has been widely developed in use cases like low power AIoT devices, smartphones, tablets, ARVR, automotive, set-top boxes, DTV’s and video cameras worldwide.

Hantro VC9000E provides customers a silicon proven solution for integrating high-performance video capability into their chips.

VC9000E

All the help you need

IDH operates globally and we are happy to meet you at any time to discuss your order demand for Hantro VC9000E.
Please feel free to contact us and submit your request online, or reach out to your nearest IDH sales office for making an order or appointment, or meet us at the next industry event.

Video Format

Unified architecture supports multiple formats

AV1 main profile 8/10bit

HEVC main10, main, and main still profiles

H.264 baseline, main and high, high10

VP9 profile 0 and profile 2 (10-bit)

JPEG

High performance and throughput

Up to 4K60@520Mhz performance with a single-core

High BUS latency tolerance without performance impact

Maximally offloads the system CPU

Leading in PPA/Die Area for high performance solution

High encoding quality

Leading PSNR BDR data

Visual quality optimization

User Controlled Intelligent encoding capability with AI by FLEXA API

Features for different application requirements

Inline preprocessing features and OSD blending

DDR efficiency and bandwidth saving

Low-latency encoding

Flexible HW configuration

HW configuration can be done for most video formats

Typical 1-4 cores or more in a device

Best balance between PPA and video quality for different targets

Configurable on quality level, feature set, and different performance

Controllable balance between performance and quality

Bandwidth saving by reference frame & input frame compression
